Lutz pump accessories

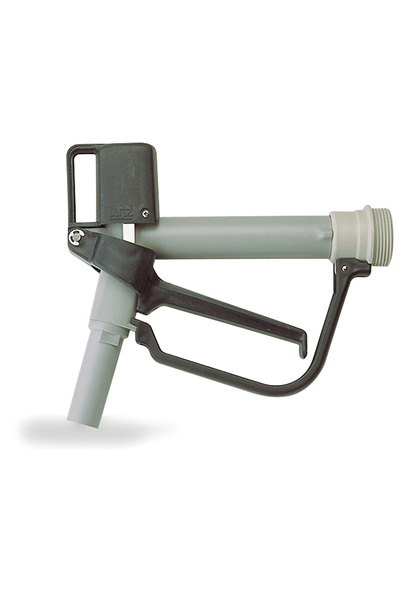

Polypropylene trigger nozzle

Most commonly used in conjunction with the polypropylene Lutz drum pump, a Lutz polypropylene trigger nozzle can be useful for filling and transferring both neutral and aggressive chemicals. Each nozzle is supplied with a 23mm cylindrical nozzle tip and a 12mm conical nozzle tip. The Lutz polypropylene trigger nozzle is fitted with Viton seals as standard, other seal materials can be provided on request.

Technical Data
3 Bar maximum pressure
760mPas Maximum viscosity
Flow Rate: Approximately 50 litres/min
Male Thread G1¼ & optional hose tail
