The perfect solution for portable applications

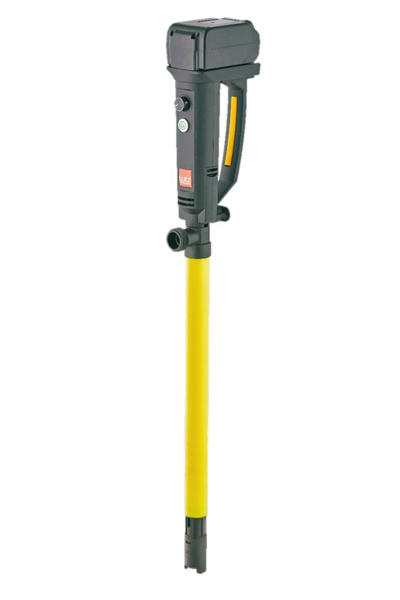

The new Lutz B2 Battery drum pump range heralds a revolution for operators requiring a safe, portable, and efficient means of transferring chemicals from drums and smaller containers. Fitted with a high efficiency brushless DC motor the Lutz B2 Battery pump can decant over 12 200 litre containers on a single charge (34 minutes operating time at maximum speed). All while maintaining maximum portability and ensuring the highest levels of safety for operators.

Pump Features
Polypropylene, PVDF, & Stainless Steel models
Impeller type:(R) High flow or (L) High head
Flows to 80 litres/min
Delivery head to 12 metres
Seal-less (SL) design
Interchangeable Battery
500, 700, & 1000mm lengths available
Data Sheet

Your choice of pump

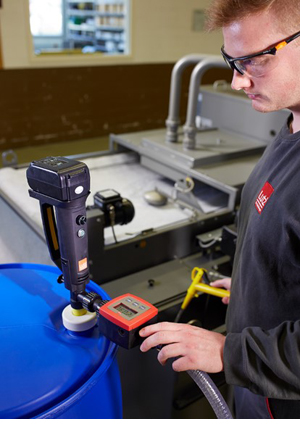

Available in polypropylene, PVDF (KynarŽ), and Stainless Steel construction the Lutz B2 Battery series of pumps caters to a wide range of applications, from acids & alkaloids to AdBlueŽ and other DEF solutions. Team this pump with a Lutz flow meter and achieve full control of your pumping application. The B2 Battery range is available in 500, 700, and 1000mm lengths to suit a wide range of containers both big and small.

The complete package

Each B2 Battery pump kit comes complete with a 1.5 metre checmially reistant discharge hose, a trigger nozzle, and wall bracket for storage. No need to organise hoses and fittings with your pump, it's ready to start pumping straight out of the box. The Seal-less design allows for limited dry running, and further enhances the chemical resistance of the pump.

The Lutz B1/B2 Battery range presentation
