Lutz pump accessories

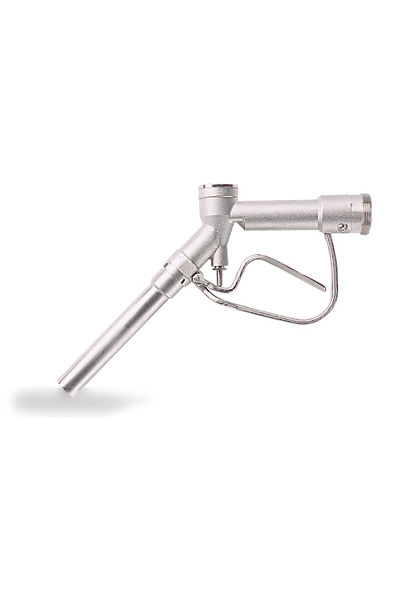

Brass trigger nozzle

The Lutz brass trigger nozzle is an excellent option when used in conjunction with pumping solvents. The all brass design with PTFE seals is safe for use in hazardous areas when combined with an appropriate hazardous are drum pump and motor combination and will provide additional control for operators carrying out pump operations. The brass nozzle can also be a cost effective option for use on neutral liquids where plastic nozzles may be damaged due to rough handling.

Technical Data
4 Bar maximum pressure
760mPas Maximum viscosity
Flow Rate: Approximately 80 litres/min
Male Thread G1¼ & optional hose tail
